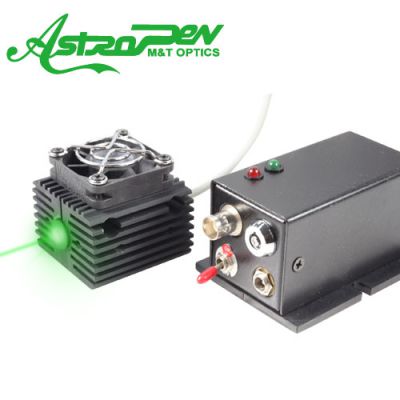

9V-Q50雷射模組
532nm/50mW 模組尺寸50X50X34mm
- Output Wavelength 532nm
- Output Power >50mW
- Lifetime >3000h
- Warranty 1 year
- Beam Mode TEM00
- Operation Mode CW or Modulation(5V TTL signal)
- Highest Modulate Rate >10KHz
- Temperature control TEC
- Beam Quality (M2)<1.2
- Beam Diameter (1/e2) <1.0mm
- Beam Divergence <2.0 mrad
- Power Stability <±5% (1 hour)
- Warm Up Time < 10min
- Laser head：L120mmXW50mmXH50mm
- Power supply：L120mmXW60mmXH40mm
- Broad range of input voltage(85~265V)
- Plug-in and time-lapse starting
- and circumstance no more than 1 degree
| 型式 | 尊爵黑精雕散熱鰭片鋁合金外殼 |
| 尺寸 | φ20x110mm |
| 雷射二極體 | 日系氣密氮氣腔500mw-LD,50mW≦532nm |
| 輸出波長 | 倍頻晶體532nm綠光,濾波結構IR輸出≦0.001% |
| 輸出模式 | 連續式CW,APC結構光電偵測技術穩定率≦5% |
| 電源需求 | DC5V(5521母),電流<600mA, 可另購DC5V變壓器或UPS電池 |
| 發散角 | <1mrad(光點直徑6mm/距離10000mm) |
| 重量 | 約76g |
| 建議操作溫度與時間 | 0~30℃,功率連續穩定時間60分鐘 |
| 用途 | 實驗,教學,工程,指引 |
| 保固 | 購買日起原廠保固一年 |
| 產地 | Made in Taiwan |
